LeBlond Engine Lathe

leb8a.jpg - 15482 Bytes

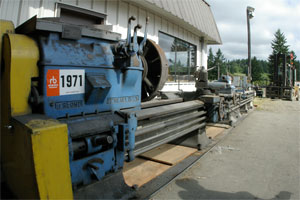

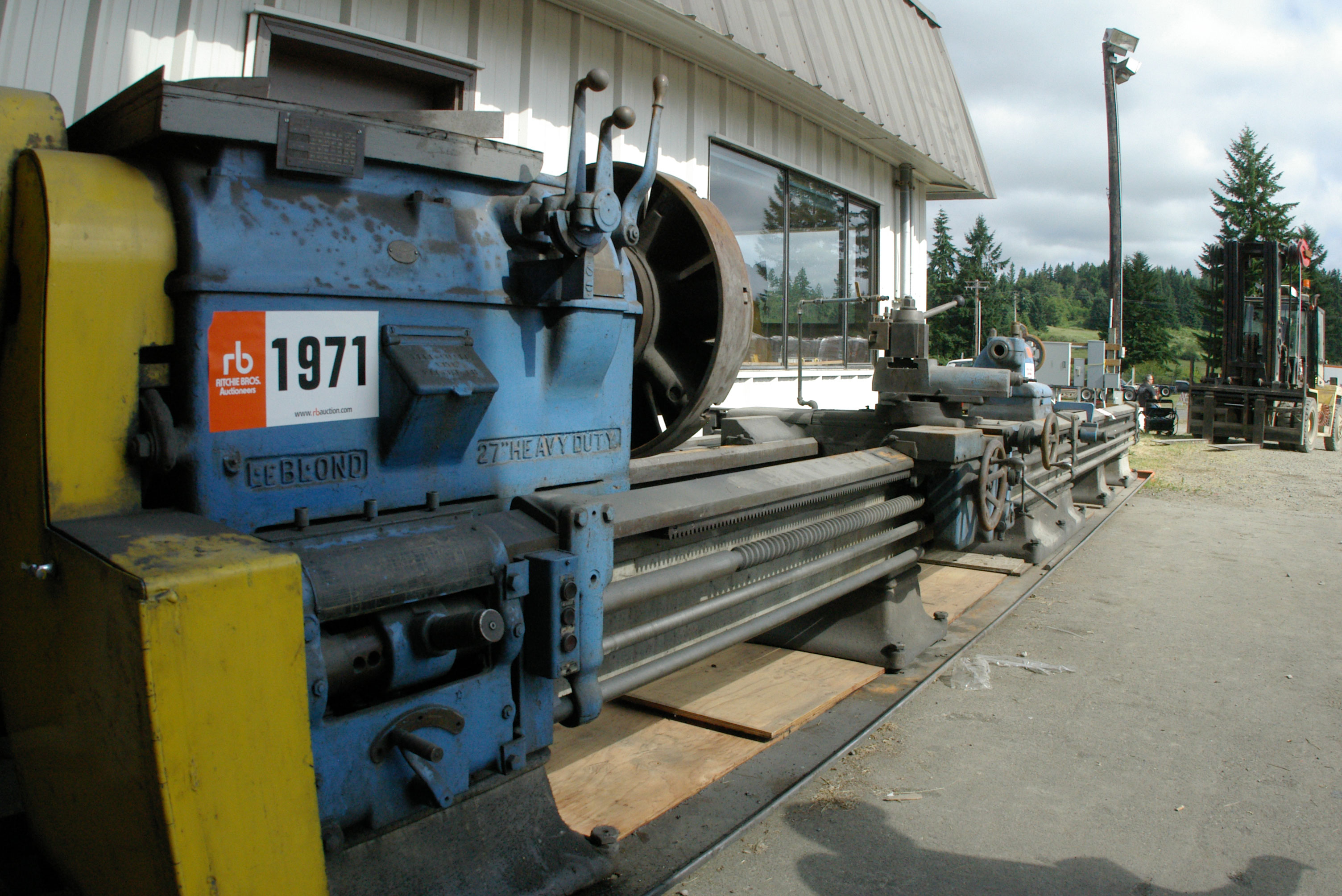

LeBlond 31" x 25' lathe
leb1a.jpg - 15482 Bytes

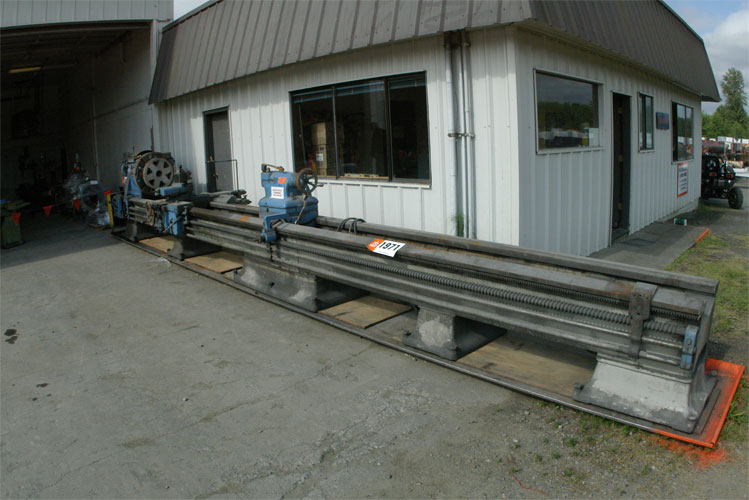

LeBlond 31" x 25' lathe
leb2a.jpg - 15482 Bytes

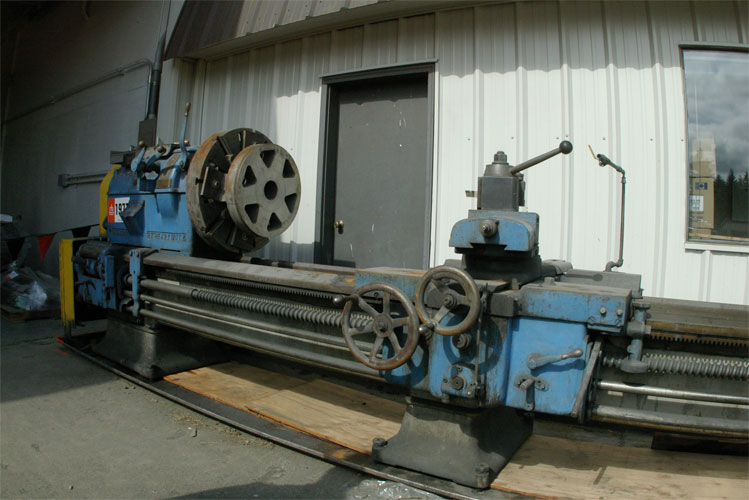

LeBlond 31" x 25' lathe
leb3a.jpg - 15482 Bytes
LeBlond 31" x 25' lathe
leb4a.jpg - 15482 Bytes

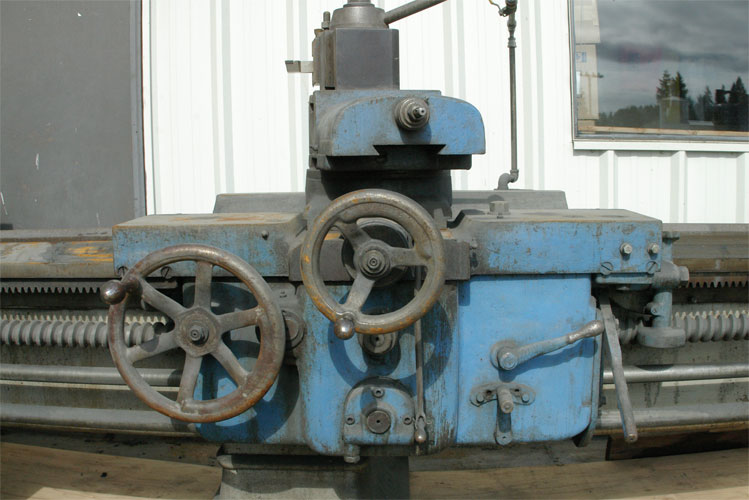

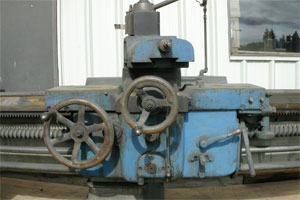

Apron
leb5a.jpg - 15482 Bytes

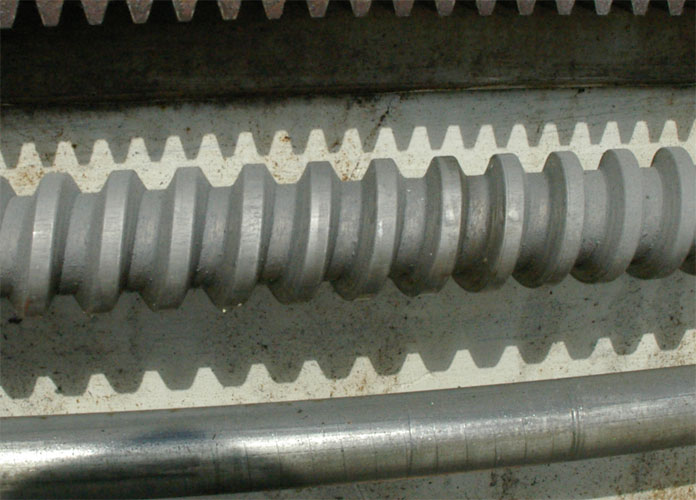

Lead Screw
leb6a.jpg - 15482 Bytes

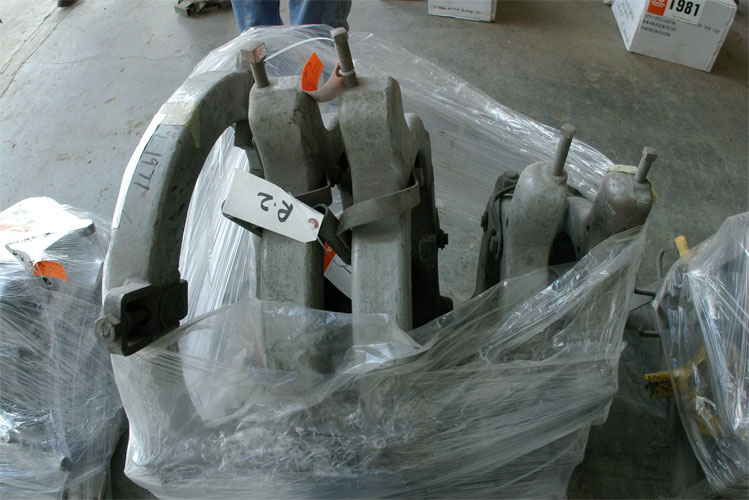

5 steady rests
leb7a.jpg - 15482 Bytes

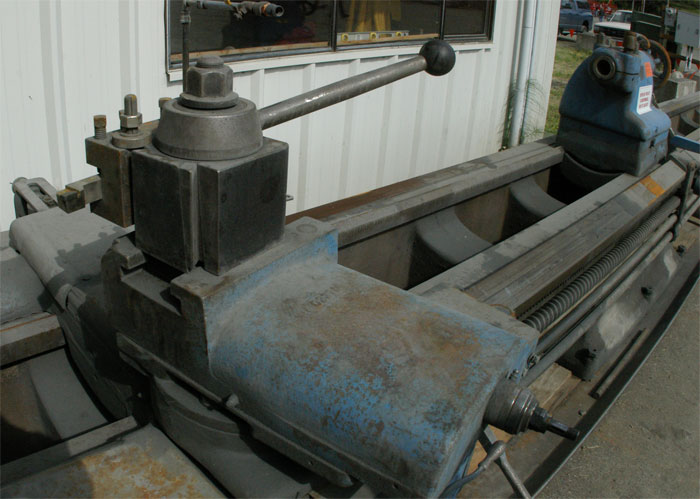

LeBlond Compound
leb9a.jpg - 15482 Bytes

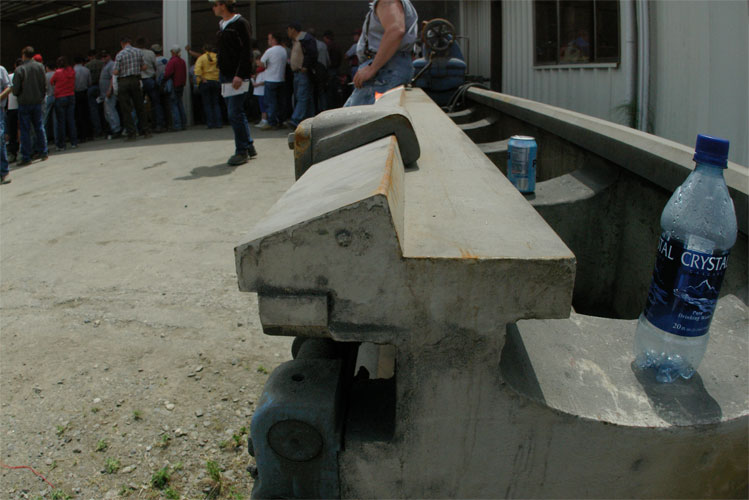

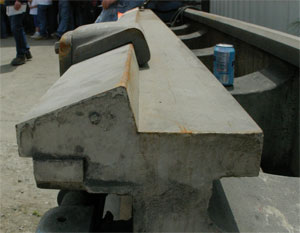

LeBlond Bed
leb11a.jpg - 15482 Bytes

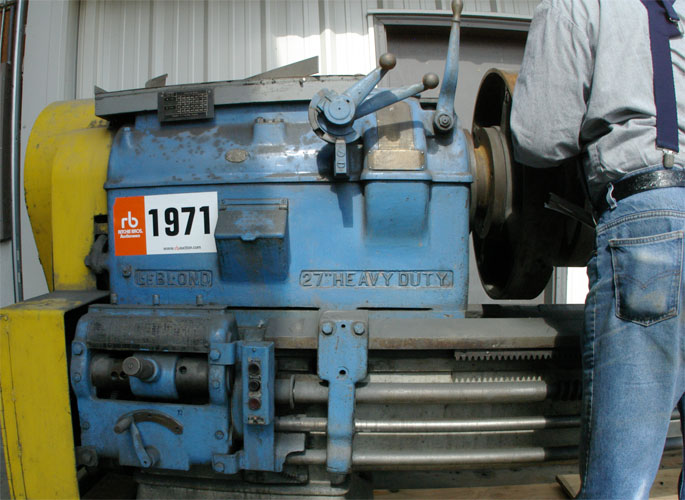

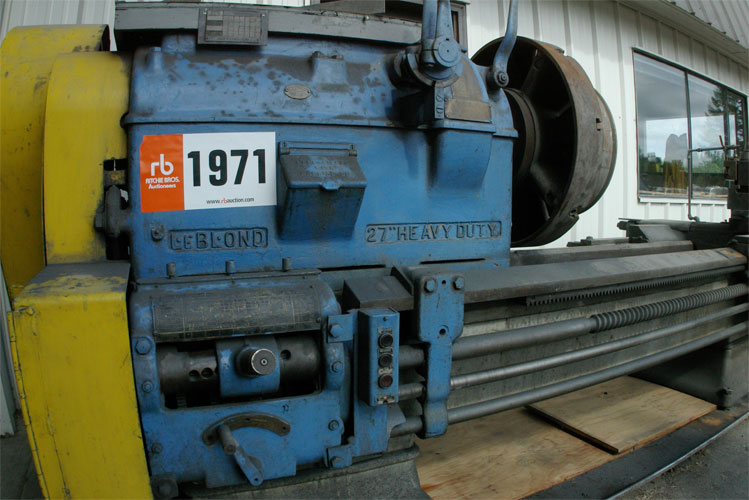

The Gear Head
leb10a.jpg - 17381 Bytes

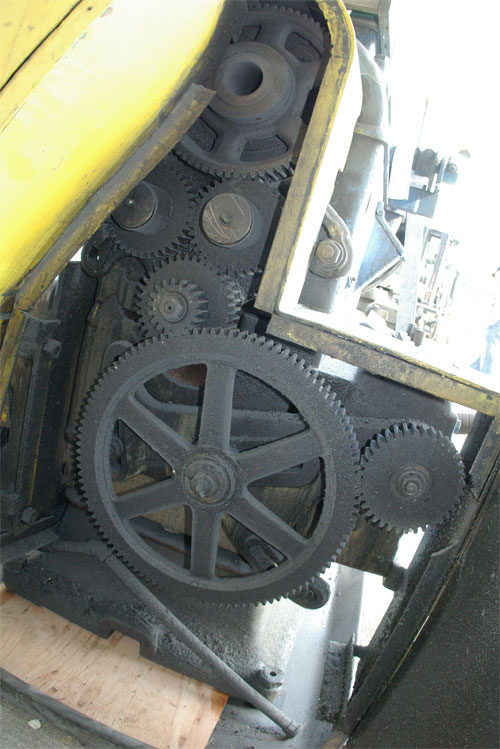

LeBlond Gear Train

Presented here is one that got away. This is a rather remarkable example of a Leblond Gear head lathe which has been around for a while. The Headstock has 27" cast on it, but is blocked up with a 2" block giving it additional swing. It measures around 32" of swing. the chuck shown is a 28" diameter chuck. That lathe is powered by a 20 HP 3 phase motor.

Spindle speeds of 8 to 300 RPM are provided. The lead screw is of a 1 thread per inch design and as you can see from the photo is not a classic Acme. The spindle on the land appears to be 4.25" with a 3 TPI thread. I found this beauty at auction, and while she was interesting, at the time I had purchased another large lathe only a few weeks before, and it frankly would not fit in my shop, so this lathe has moved on to a hopefully happy home elsewhere.

This lathe is thought to be fairly old, but somethings appeared not so old, as the zerk fitting in the gear train on the head stock. Similarly, the 20 HP 3 phase motor was in a modern frame. The flip lid on the side of the gear head for an oil level and filler is quaint by todays standards though, and contains an admonition to use quality machine oil.
